Hot Selling Fully Automatic Easy Clean Stainless Steel Puree Juice Crushing Machine

Name: Hot Selling Fully Automatic Easy Clean Stainless Steel Puree Juice Crushing Machine
Brand: Zhongde Food Machinery Jingjiang Co., Ltd.
Price: 2.00 USD
Availability: InStock

Large Image : Hot Selling Fully Automatic Easy Clean Stainless Steel Puree Juice Crushing Machine

Product Details:

Payment & Shipping Terms:

Price:	$3,000/sets 1-4 sets

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Core Components:	Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Model Number:	HPC-5, HPC-10, HPC-15, HPC-20, HPC-30
Brand Name:	Zhongde	Place Of Origin:	Jiangsu, China
Voltage:	380v	Power(w):	Custom
Dimension(lwh):	Custom	Weight:	90
Warranty:	1 Year	Application Fields:	Fruit Processing Plant
Raw Material:	Vegetables, Fruit	Key Selling Points:	Multifunctional
Product Name:	Hammer Crusher	Crushing Particle Size:	Custom
Application:	Fruit Processing Line	Material:	Stainless Steel 304
MOQ:	1 Set	Warranty:	1year
Package:	Custom	Feature:	Low Energy High Speed

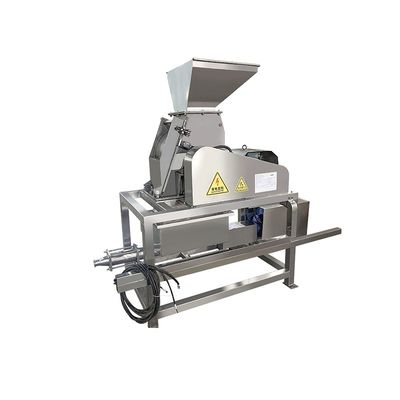

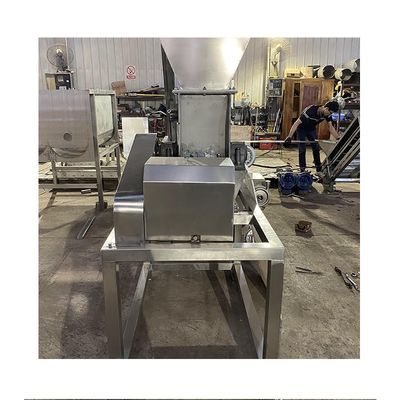

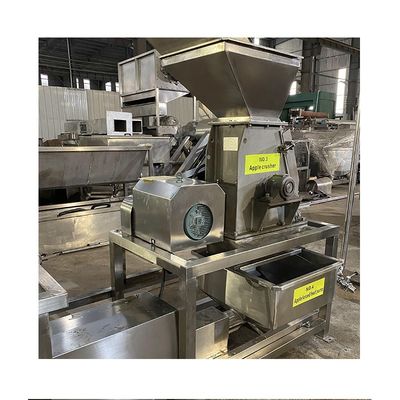

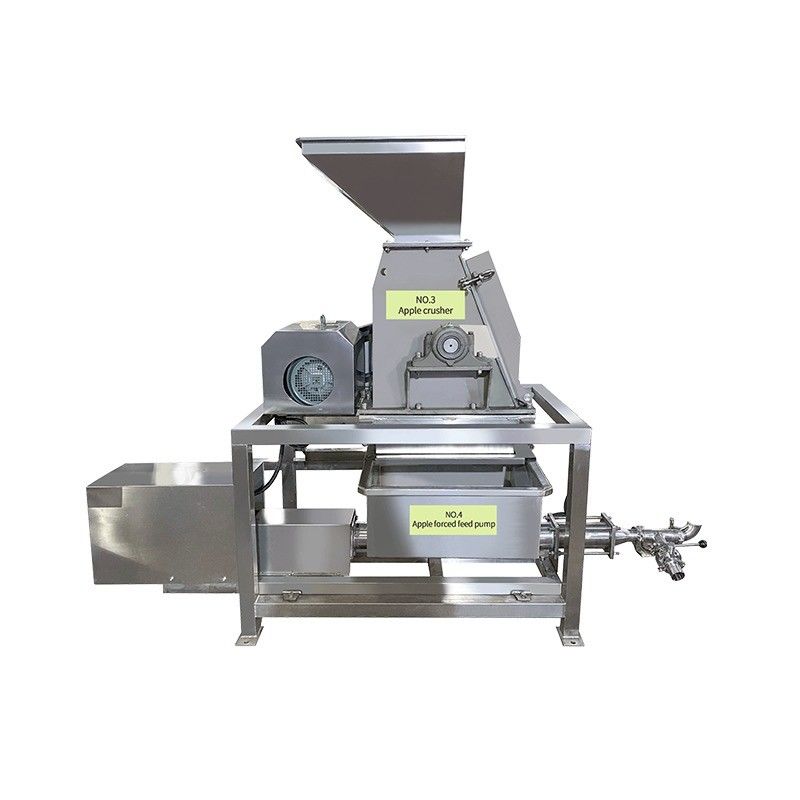

Overview of Hammer Crusher

The Hammer Crusher is a high-efficiency crushing machine designed to break down a wide variety of fruits and vegetables into smaller particles or pulp. It is especially suitable for processing hard or fibrous raw materials such as apples, pears, carrots, tomatoes, pineapples, rhubarb, and pre-cooked root vegetables. Using a high-speed rotating hammer mechanism, the crusher ensures uniform particle size and efficient crushing with minimal juice loss. It is commonly used as a pre-processing step before juicing, pulping, or refining.

Key Features of Hammer Crusher

* Application:Crushing hard or fibrous fruits and vegetables * Material:SUS304 food-grade stainless steel * Structure:Feed hopper, rotor with hammers, crushing chamber, screen net, discharge outlet * Capacity:Typically 5–30 tons per hour (customizable based on material and model) * Rotor Speed:High-speed operation to ensure effective crushing * Screen Mesh:Interchangeable screen nets for controlling final particle size

Model	Production capacity （t/h）	Matched power （kw)	Number of blades (psc)	Note
HPC-5	5	7.5	27	1. The crushing particle size can be customized according to the customer's screen 2. The 30T/h machine consists of two sets 15T/h machines installed on the same frame 3. The main shaft speed is 1500rpm 4. The production capacity is based on apples
HPC-10	10	11	33
HPC-15	15	18.5	42
HPC-20	20	30	57
HPC-30	30	37	66
