Ultra High Temperature Industrial Tubular Sterilizer Autoclave Sterilization Machine

Name: Ultra High Temperature Industrial Tubular Sterilizer Autoclave Sterilization Machine
Brand: Zhongde Food Machinery Jingjiang Co., Ltd.
Price: 2.00 USD
Availability: InStock

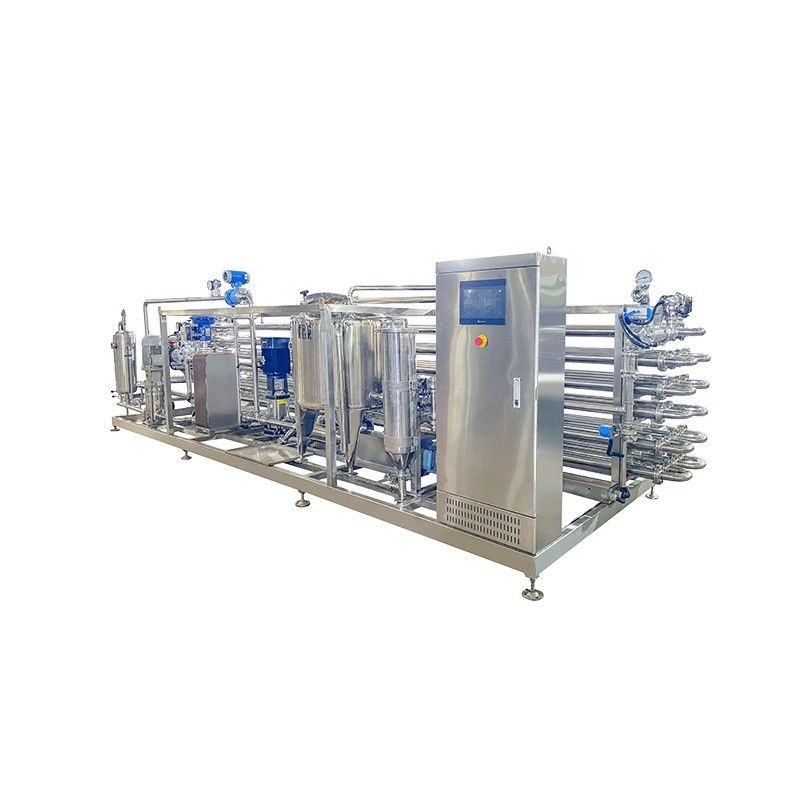

Large Image : Ultra High Temperature Industrial Tubular Sterilizer Autoclave Sterilization Machine

Product Details:

Payment & Shipping Terms:

Price:	$42,000/sets 1-4 sets

Contact Now

Detailed Product Description

Processing:	Sterilizer	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Place Of Origin:	Jiangsu, China	Brand Name:	ZhongDe
Model Number:	Custom	Processing Type:	Milk
Voltage:	Custom, 380V	Weight:	1960
Dimension(lwh):	Custom	Warranty:	1 Year
Product Name:	Tubular Sterilizer	Application:	Drinks
Keywords:	High Efficiency	Material:	304 Stainless Steel
Processing:	Heating + Pasteurizing +cooling	Advantage:	High Efficiency Low Cost
Capacity:	Custom	Motor:	Automatic
Sterilization Method:	Ultra-high Temperature

Overview of Tubular sterilization machine

The move is on for ultra-high temperature (UHT) sterilization, which will extend the shelf life of milk and other dairy products. UHTsterilization is being used because consumers are buying more dairy products in bulk, dairy operations are becoming larger, and population expansion is increasingly causing consumers to be located in more remote locations throughout the world. Traditionally, milk is pasteurized at 180- 185°F (about 85°C) and refrigerated. Other dairy products are commercially sterilized by subjecting product to temperatures in excess of 100˚C, and then packaging it in airtight containers. The basis of UHT is sterilization of the product before packaging, then packaging it in pre-sterilized containers in a sterile atmosphere. Processing dairy products in this manner, using temperatures exceeding 135˚C, permits a reduction in the required hold time to 2-to-5 seconds, and yields a shelf stable product that can be stored for extended period of time at ambient temperature.

Key Features of Tubular sterilization machine

1. High heat efficiency, 90% of heat can be reused after the product be processed; 2. Temperature difference between the product and the heating medium is small, so the heating is gentle; 3. It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable; 4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable; 5. The inside of the tubular adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state; 6. The system is strong safety, the fittings all adopts reliable materials; 7. The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands. 8. With self SIP

Product name	Tubular Sterilization machine
Process	5℃→65℃(homogenizer)→137℃(3-5S)→20℃-25℃
Type	Capacuty (LPH)	Consumption (KG/H)	Pressure (KG)	Power (KW)	Dimension (M)	Weight (KG)
BTG-UHT-1MJ	1000	40	6.0	4.0	3.3X0.9X1.8	1960
BTG-UHT-1.5MJ	1500	60	6.0	4.0	3.3X1.6X1.8	1960
BTG-UHT-2MJ	2000	80	6.0	6.0	4.5X1.8X2.0	2160
BTG-UHT-3MJ	3000	120	6.0	6.0	4.5X1.8X2.0	2420
BTG-UHT-4MJ	4000	160	6.0	7.0	4.5X2.0X2.0	2570
BTG-UHT-5MJ	5000	200	6.0	7.0	4.5X2.0X2.0	2940
BTG-UHT-6MJ	6000	240	6.0	7.0	4.5X2.0X2.2	3300
BTG-UHT-8MJ	8000	320	6.0	11.0	6.5X2.0X2.2	3700
BTG-UHT-10MJ	10000	400	6.0	11.0	6.5X2.0X2.2	4200
