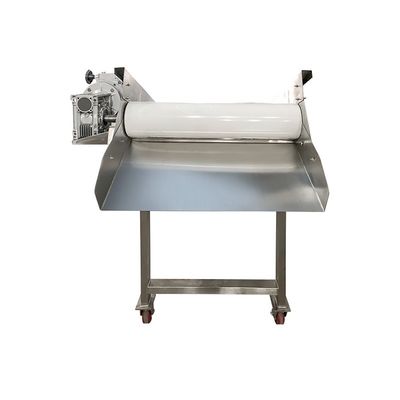

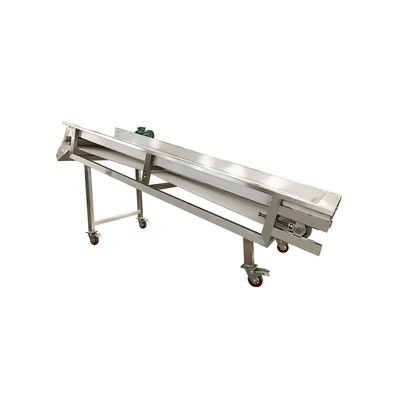

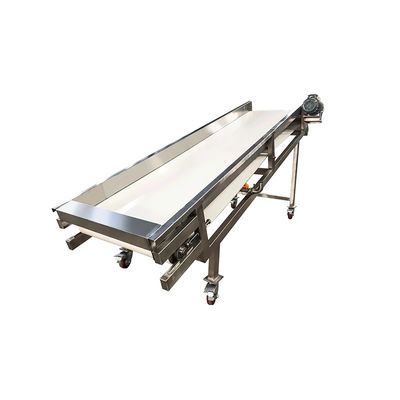

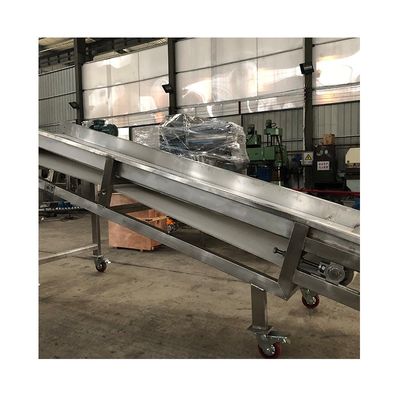

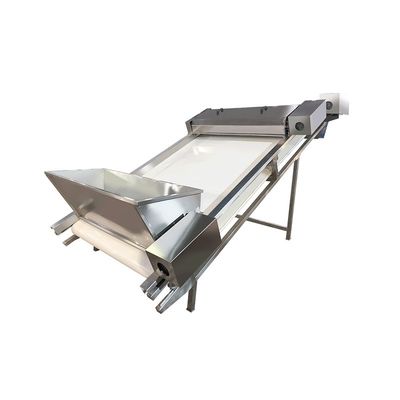

Commercial Automatic Food Grade Stainless Steel Wire Mesh PVC Conveyor Belt Machine

Name: Commercial Automatic Food Grade Stainless Steel Wire Mesh PVC Conveyor Belt Machine
Brand: Zhongde Food Machinery Jingjiang Co., Ltd.
Price: 1.00 USD
Availability: InStock

Large Image : Commercial Automatic Food Grade Stainless Steel Wire Mesh PVC Conveyor Belt Machine

Product Details:

Payment & Shipping Terms:

Price:	$1,200/sets 1-4 sets

Contact Now

Detailed Product Description

Brand Name:	ZhongDe	Dimension(lwh):	Custom
Place Of Origin:	Jiangsu, China	Automatic Grade:	Automatic
Voltage:	110V, 220V, 380V, Custom	Power:	0.55, 0.75, 1.1, 1.5
Machinery Capacity:	Custom	Key Machines:	Belt Conveyor
Weight (KG):	120	Function:	Assembly, Feed, Mounting, Welding, Handling, Packaging, Wiring, Cutting, Testing, Dispensing, Finishing, Machining, Measurement, Quality Control, Surface Treatment, Multi-function
Product Name:	Belt Conveyor Machine	Application:	Conveying Products
Material:	SUS304	Feature:	Eco-Friendly
Advantage:	Long Working Life	Size:	Customised Size
MOQ:	1set	Speed:	Adjsutable Speed
Warranty:	1-year

Overview of Belt conveyor

The Belt Conveyor is an essential piece of equipment in fruit and vegetable processing lines, designed for the efficient, continuous, and gentle transport of raw or processed products. It is widely used to transfer produce between washing, sorting, cutting, drying, and packaging stages. Built with a food-grade conveyor belt and stainless steel frame, the machine ensures sanitary, non-damaging transportation. The belt speed, width, and material can be customized according to specific production requirements.

Key Features of Belt conveyor

* Application:Transporting fresh or processed fruits and vegetables * Belt Type:Food-grade PVC, PU, or modular plastic belts * Frame Material:SUS304 stainless steel * Conveyor belt material：Stainless steel net belt/engineering plastic net belt/PP woven net belt,etc. * Conveyor Length & Width:Fully customizable to suit plant layout * Drive System:Motor-driven with adjustable speed (VFD available) * Design Options:Flat, inclined, or curved configurations; side guards; collection trays * Waterproof & Easy to Clean:Designed for wet or hygienic environments

Model	Production capacity T/h	Matched power kw	Dimensions (mm)	Frame Material
WXJ-1	0.5-1	0.55	25007101000	SUS304 Stainless Steel
WXJ-3	2-3	0.75	40009101000	SUS304 Stainless Steel
WXJ-5	3-5	1.1	500011201000	SUS304 Stainless Steel
WXJ-10	5-10	1.5	600013201000	SUS304 Stainless Steel
